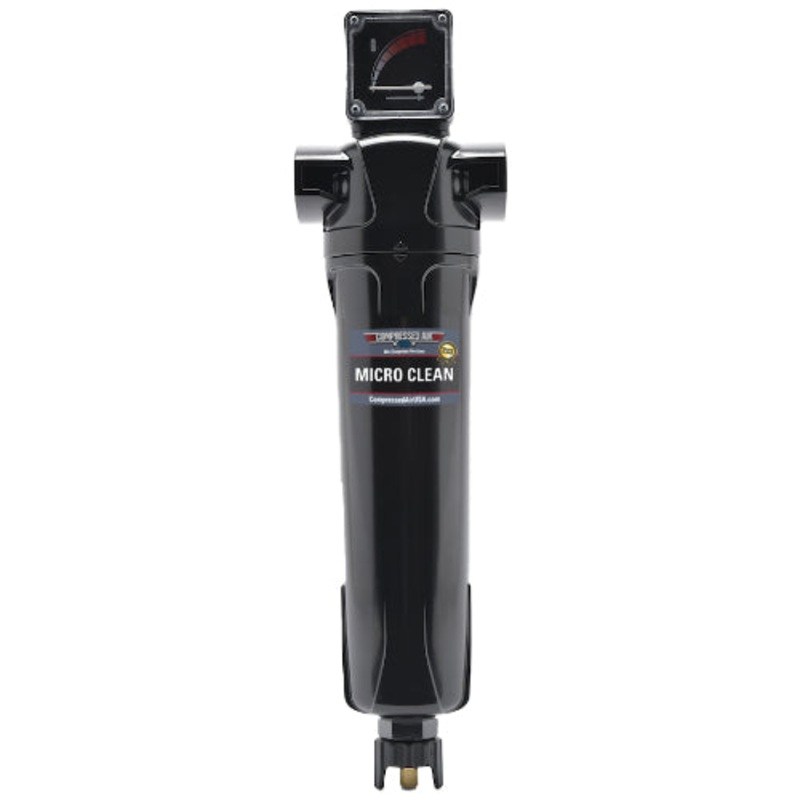

1 Micron General Purpose Coalescing & Particulate Micro Clean Line Filters (ISO CLASS 2)

Description

ELEMENT TYPE 2-in-1 Coalescing & Particulate, High Efficiency PERFORMANCE ISO CLASS: 2 (per ISO 8573.1:2010)
Max Particle Size: 1 micron
Max Oil Content: 0.1 ppm (mg/m)
Water Pressure Dew Point: -40C/-40F PRESSURE 15 to 50cfm models: 0-232psig
85 to 1500cfm models: 22-232psig TEMPERATURE 32-176 F AUTOMATIC FLOAT DRAIN OUTLET 1/8″ NPT RECOMMENDED ELEMENT LIFE 12 Month WARRANTY 1-Year on Filter Elements
10-Year on Filter Housings

The Compressed Air USA Micro Clean XF Filter line is an advanced filter technology for coalescing and particulate filtration in compressed air and gas applications. XF Filters utilize deep pleated media for exceptional particulate retention and custom anti-re-entrainment layer for oil aerosol removal. Our robust construction is designed for both longevity and energy efficiency as these models have an extremely low pressure drop across them (<125 mbar). Manufactured in an ISO 9001 approved facility and tested in accordance with ISO 12500-4. Micro Clean filters are also designed to exceed the ISO 8753-1 standards for compressed air purity & the ISO 12500 series international standard for compressed air filter testing. Micro Clean filters also carry Canadian Registration Numbers (CRN) for approved use in every province of Canada. Our filters are also subject to a 1000 hour neutral salt spray test for corrosion resistance to ISO 9227:2006, burst pressure test for a 5:1 safety factor, 100% tested for pressure leaks, and 100% tested for aerosol integrity.

FEATURES:

• General Purpose Filter rated for 1 micron particulate and 0.3ppm oil
• Advanced filter design to optimize flow capabilities, reduce differential pressure, and boost energy efficiency of the system
• Extremely low pressure drop (<125 mbar)
• Die cast aluminum housing and polyester powder coated finish for industry leading corrosion resistance, long life of reliable filtration
• Deep pleated filter media for exceptional particulate retention
• Custom anti-re-entrainment layer for oil aerosol removal
• Fixed thread engagement stop and lock indication arrows on push fit elements to prevent over tightening and to ensure an effective seal
• Externally accessible Automatic Float Drain
• Differential Pressure Gauge for quick visual indication of filter life
• Improves your processes and reduces costly downtime
• (15CFM models are not equipped with a differential pressure gauge)
• Serviceable with Replacement Filter Elements, Replacement Auto Float Drain, and Replacement Differential Pressure Indicator

VIEW TECH DATA SHEET & DRAWING & PRESSURE CORRECTION TABLE HERE

Compressed Air USAs Micro Clean line offers proven Performance, Quality, and Reliability. We offer a complete and cost effective solution to Compressed Air Treatment. Over the 10 year life of a compressed air system, on average the cost of energy to run the system far outweighs the capital investment of buying it.While maintenance cost is not much, it is extremely importantbecause it directly impacts energy efficiency and compressor health.A 10psig pressure drop represents a 5% increase in energy cost.Neglected filters that become clogged creates a continuous pressure drop, which destroys the efficiency of your system. Entrained water and oil destroys system components and tools. Protect your equipment, tools, processes, and ultimately your business.

For the highest quality compressed air possible, we recommend utilizing an Air Dryer, Line Filters, and a Water Trap to remove all contaminants from the system.

Where to install the General Purpose Filter in your compressed air system:

• In a system with aRefrigerated Air Dryer:

• Air Compressor Receiver Water Trap 1 Micron Filter Refrigerated Air Dryer 0.01 Micron Filter

• In a system with aDesiccant Air Dryer:

• Air Compressor Receiver Water Trap 0.01 Micron Filter Desiccant Air Dryer 1 Micron Filter

• In a system at thePoint of Use:

• Water Trap 1 Micron Filter 0.01 Micron Filter Point of Use Connection
