Description

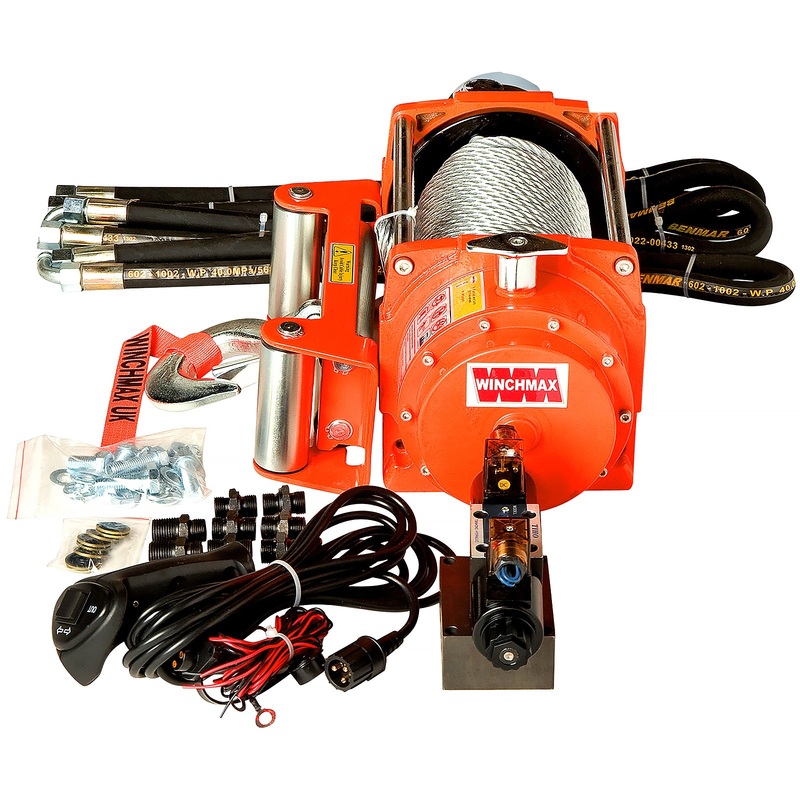

20,000lb (9072kg) Original Orange Hydraulic Winch, Steel Rope, 24V Control System
Includes full 24v wired/wireless control system, pipes and connectors
Ideal for recovery trucks & trailers 7.5T+, industrial, commercial & agricultural
Features
- 20,000lb (9,072kg) straight-line pull hydraulic winch (24v controls)
- Ultra-tough three-stage gearbox with hardened steel gears.
- The casing is machined from billet steel for maximum impact protection.
- 25m x 14mm galvanized steel wire rope.
- Through-drum rope attachment with grub screw clamp for maximum security.
- 1/2 Inch grade 70 forged clevis hook with safety catch, zinc plated for corrosion resistance and hand saver.
- Tough four-roller fairlead with zinc-plated rollers.
- Sliding ring gear free-wheel clutch.
- 24V electrically operated CETOP 3 (NG6) solenoid-operated directional valve control.
- Compatible with the full WINCHMAX range of wireless remote controls.
- Big grip controller for power in/out with extra-long 4.5m wander lead.
- Wander lead wiring harness and socket for connection to the solenoid valve.
- Hydraulic hose assemblies 1.25m long (x4) fitted with 18 x 1.5mm threaded fittings.
- High tensile fixing bolt kit.
- Heavy duty & built to last – gross weight 70kg.
- CE certified & built to ISO9001 quality management system requirements.
Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.
