60 Gallon Tank Compressed Air Receiver 200psi (302410) (302412)

Description

TANK CAPACITY 60 gal / 8 ft PRESSURE 200 PSI CONFIGURATION Vertical MOUNT Basering DIMENSIONS 20×48 IN WEIGHT (TOP PLATE) 159 LB (192 LB)

Compressed air storage is key to an air system storing energy for later use. Manchester Tank manufactures high quality air receivers capable of reliable air storage. Pair this air receiver with a base mounted air compressor to supply your compressed air. This model of receiver tank has 60 gallons of capacity rated at 200 PSI, and is also available with a top-plate. All Manchester Tank air receivers are stamped and registered with the National Board of Boiler and Pressure Vessel Inspectors. Constructed in accordance with the ASME Section VIII Division I Code and also capabilities to meet codes for American Bureau of Shipping (ABS), United States Coast Guard (USCG), Department of Transportation (DOT), Transport Canada (TC).

• Vertical storage tank with basering for compressed air and gas systems

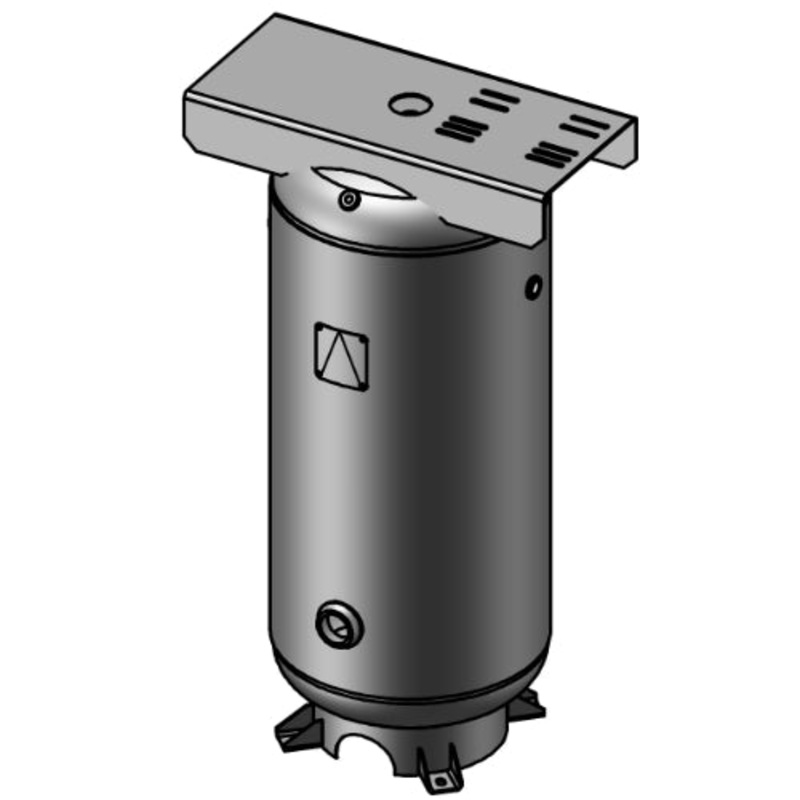

• Optional top plate mount available
• Steel construction with an exterior grey powder coat primer
• Constructed in accordance with the ASME Section VIII Division I Code
• Stamped and Registered with the National Board of Boiler and Pressure Vessel Inspectors
• Capabilities to meet codes for American Bureau of Shipping (ABS), United States Coast Guard (USCG), Department of Transportation (DOT), Transport Canada (TC)
• Tank Kit includes: (1) Safety Relief Valve, (1) Gauge, (1) Ball Valve
• Recommended – install anAutomatic Drain Valve

DOWNLOAD SPEC SHEETS HERE:302410,302412
