60 Gallon Tank Vertical Compressed Air Receiver 200psi

Description

TANK CAPACITY 60 gal / 8 ft PRESSURE 200 PSI CONFIGURATION Vertical MOUNT Feet DIMENSIONS (TOP PLATE) 20×48 IN (20×48 IN) WEIGHT (TOP PLATE) 151 LB (173 LB)

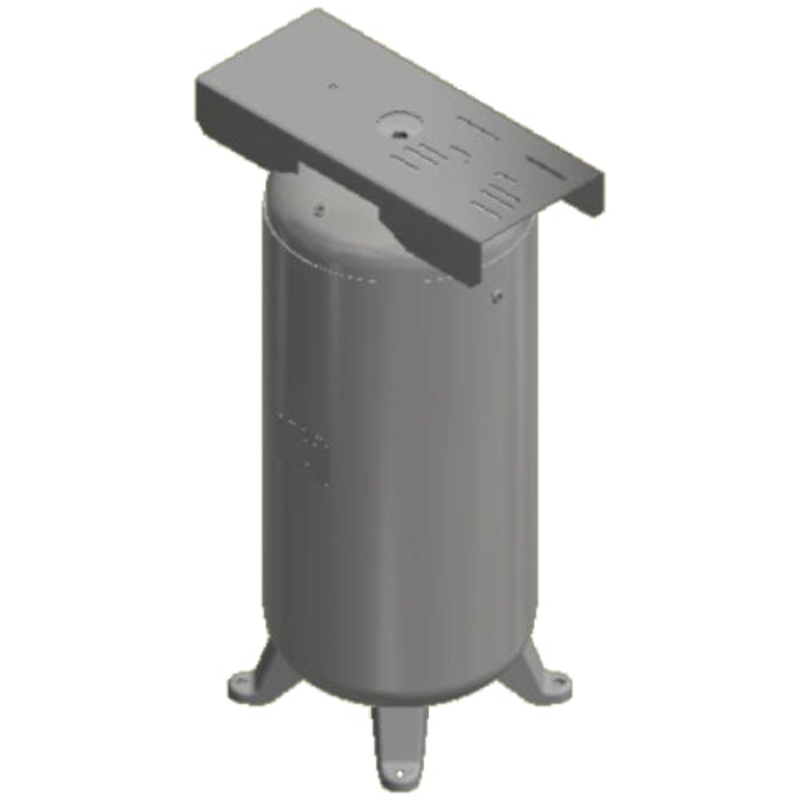

Compressed air and gas storage is key to any system storing energy for later use.Samuel manufactures high quality, ASME certified receiversfor reliable air storage, perfect for pairing with a base mounted air compressor. This model of receiver tank has 60 gallons of capacity, is rated for 200PSI, and is available with or without a top mounting plate.

• Vertical storage tank with feet for compressed air and gas systems
• Available with 13×30″ top plate
• Steel construction with standard primer exterior – universal water based alkyd enamel
• Constructed in accordance with ASME standards
• Tank Kit includes: (1) Safety Relief Valve, (1) Gauge, (1) Ball Valve
• Interior Epoxy coating available, additional 2 week lead time
• Recommended – install anAutomatic Drain Valve

DOWNLOAD SPEC SHEETS HERE:A10043,A10044
