Description

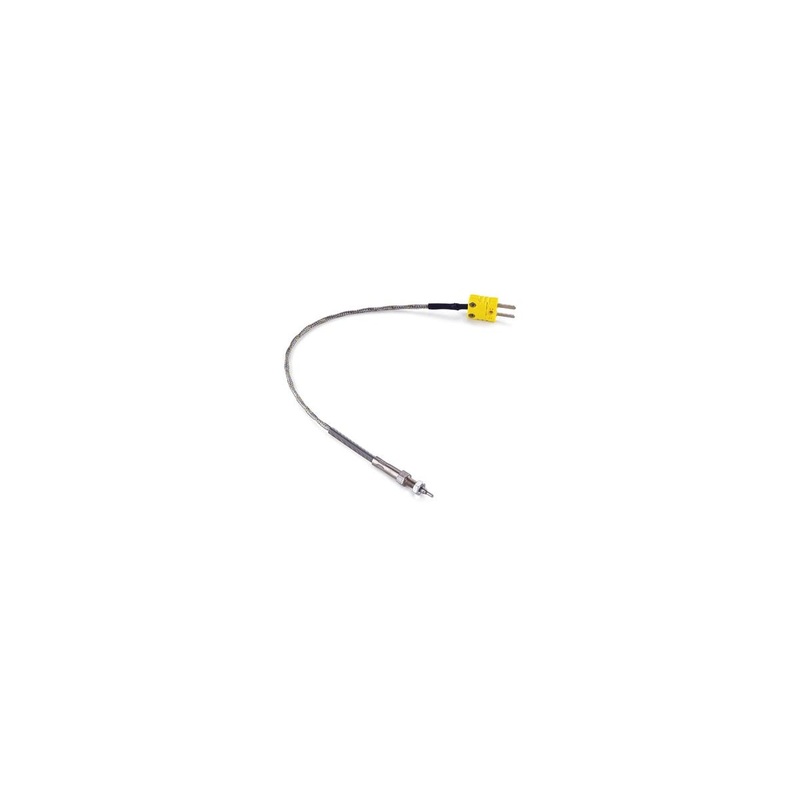

AIM Mychron 5 & 4 EGT Thermocouple Sensor

The K-type (two blade flat) connector on any MyChron thermocouple requires either aMyChron K-Type to 3 Pin 712 Patch Cable(Part No. AIM-MC-008) for Kart dashes or aMyChron K-Type to 4 pin 712 Patch Cable(Part No. AIM-MC-208) for MyChron3 XG-Log Auto dash. MyChron3 Gold Auto and MyChron3 Plus Auto already use the K-Type connector. For these dashes, or to extend the cable further for other dashes, use theMyChron K-Type Thermocouple Patch Cable(Part No. AIM-MC-203).

We also stockReplacement M5 Thermocouple Mounting Bung(Part No. AIM-MC-018) to move the thermocouple to a new exhaust pipe. This is a simple add-on to any pipe as you just drill a hole, grind away any paint and weld it in. The preferred location for a thermocouple is 150m, (5.90″) from the cylinder head exhaust port of the engine.

Patch cable sold separately.

AiM Mychron EGT Sensor Details:

• Manufacturer: Aim
• Manufacturer part number: X05TCM12A1175M
• Pipe end thread: M5
• Harness end: K-Type (2 blade flat yellow)
• This has M5 male threads on thermocouple sensor
