Description

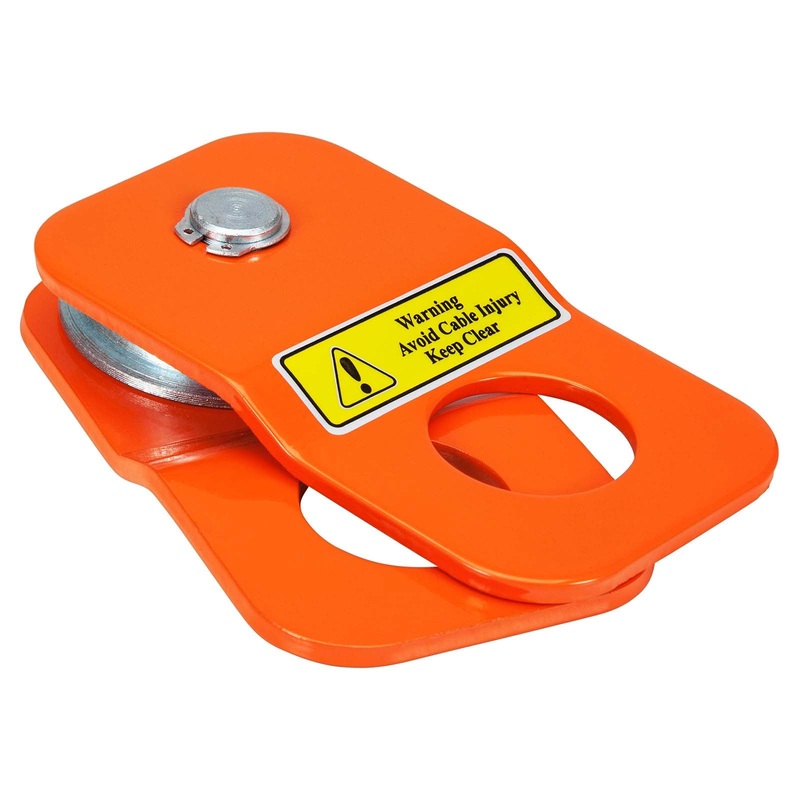

4 Tonne (4000kg) Snatch Block
Features
- An essential tool for use with your quad/ATV/Argo winch.
- Orange powder-coated finish, won’t get left behind.
- 145mm Long x 79mm Wide x 37mm diameter hole.
- For use with up to 7mm cable diameter.
- Weighing in at over 1kg this is a heavy-duty product.
- Superb quality with spindle and circlip retaining ring
Click here to go to our 12 tonne snatch block
Using a Snatch Block
- A snatch block lets you either increase pulling power/ reduce the load on your winchor change the direction of pull.
- Choose a snatch blockwith an MBL (Minimum Breaking Load) ofat least twice your winchs capacityand with a pully that fits your rope diameter.
- Open the side plates and place the pulley over the anchor shackle or tree saver shackle.
- Run the winch cable throughthe pulley groove, close the plates, and lock them.
- To double pulling power, hook the rope end back to a secure recovery point on your vehicle, creating a 2:1 mechanical advantage.
- To redirect pull, simply lead the rope from the winch throughthe block and on to the load without re-hookingthis changes the angle but not the pull ratio.
- Always keep the cable aligned in the centre of the pulley groove to prevent side loading.
Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.
