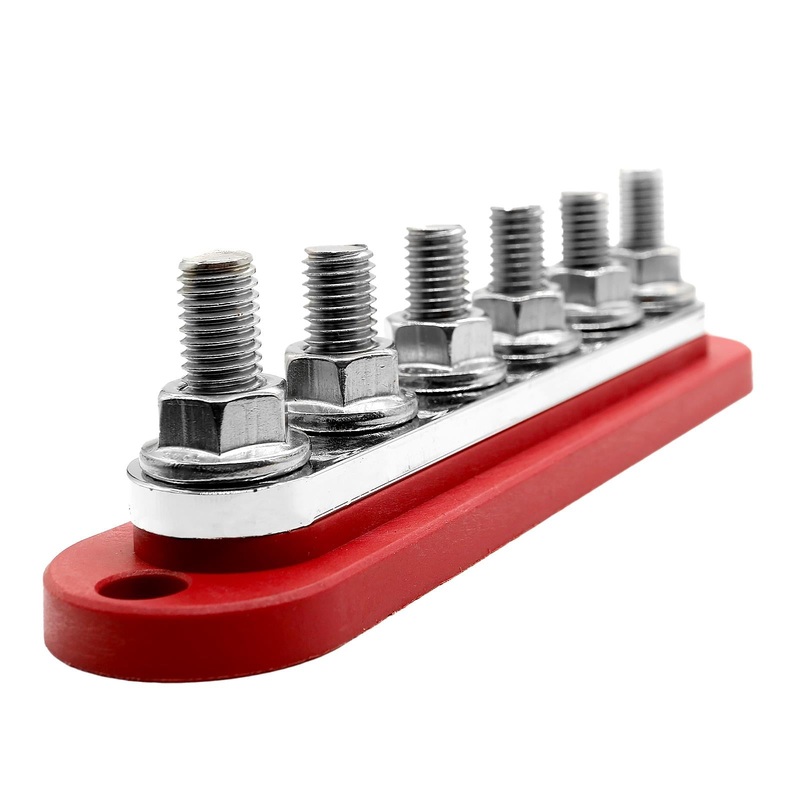

Bus Bar 300a 6 x M10 terminal. Both

Description

Bus Bar 300a 6xM10 terminal. (Pair, one Red and one Black)

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment. We offer a number of busbars with different current ratings and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.

This marine/automotive power distribution block can handle a continuous amperage Max 300A DC. The cover allows 180-degree wire lug installation and is suitable for most installation methods and end terminals.

Specifications:

• Base Material: UL94-VO Rated, Glass Reinforced Thermoplastics
• Bus Material: Solid Copper, Tin-Plated
• Size: 178 x 37 x 43mm
• Weight: 430g
• Terminal posts: 6 x M10 (3/8in)
• Current, Max Continuous: 300A (DC)

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.
