Description

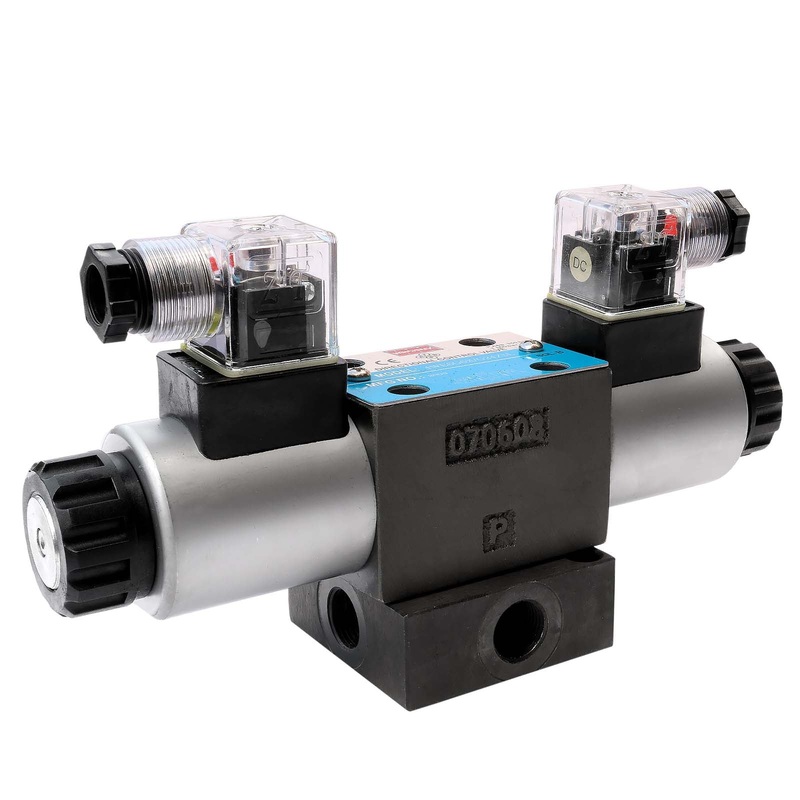

CETOP3/NG6 Solenoid Operated Modular Directional Control Valve with Manifold Subplate.
High flow directional control for hydraulic winches.
Solenoid Operated Directional Hydraulic Control Valve, CETOP3/NG6 Three-Position 12V
Used to start, stop and direct the oil flow.
Features
- Double 12V Coils.
- High Flow up to 80l/min.
- Removable DIN plug connector with clear cover, cable gland and LED indicator.
- Configuration; Spring centred P open to Tank, A & B Blocked.
- Max Pressure P,A,B, 31.5 MPa (315bar / 4500 psi).
- Manual override feature.
Manifold Subplate CETOP3/NG6 Hydraulic
Provides a manifold to connect the P,T,A,B pipework into a directional control valve (and pressure regulator if required).
Features
- Forged Steel Construction
- Side Ported P,T,A,B.
- Port size 3/8 inch BSP
Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.
