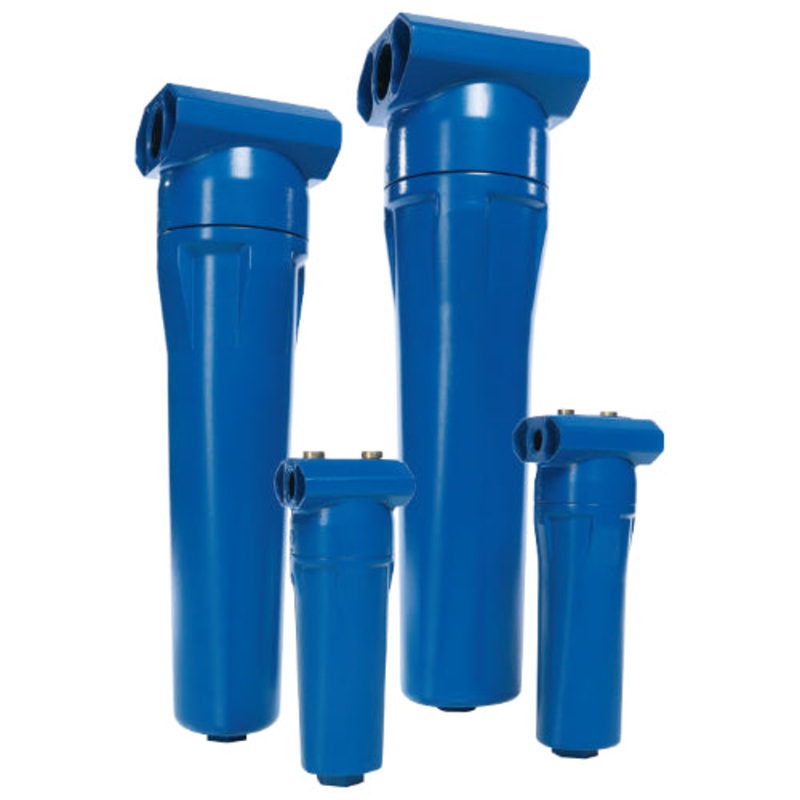

Desiccant Dryer KSI ECOCLEAN Line Filters (55 to 410cfm) (ISO CLASS 2)

Description

Promotion! For a limited time: Buy 1 filter get 25% off a replacement element automatically at checkout

ELEMENT TYPE 2-in-1 Cartridge Filter Element
Molecular Sieve:Moisture Adsorption
1 Micron After Filter: Particulate PERFORMANCE ISO CLASS2 (per ISO 8573.1)
Max Particle Size: 1 micron
Dewpoint: as low as -40F PRESSURE 232psi PRE-FILTER REQUIRED 0.01 Micron Pre-Filter Required (not included) MOISTURE INDICATOR Optional Add-On TEMPERATURE 77 F Recommended, 122 F Max MANUAL DRAIN OUTLET 1/8″ NPT RECOMMENDED ELEMENT LIFE 6 month (4000HR) WARRANTY 1-Year

Clean dry air is crucial tothe performance of any compressed air system along with the downstream components. Line filtersremove impurities such as solid particles, dust, dirt, rust, scale, oil, and condensate.

Desiccant Drying Filtrationis especially useful in Automotive, Spraying/Blasting, Laser, Lab Instrumentation, Medical, and Food applications.

2-in-1 Cartridge features both Activated Carbon & integrated 1 Micron Filter.

KSI’s ECOCLEAN Advanced Premium Filtration (APF) line is manufactured in accordance with DIN ENISO 9001 quality assurance standards, and is 100% leak tested. ECOCLEAN filters alsoexceed ISO 8753-1:2010 standards for compressed air purity,carryCanadian Registration Numbers (CRN)for North America, and approval for fluid group 2 in accordance with Pressure Equipment Directive 2014/68/EU, module B+D (category IV).

ECOCLEAN Filters are available in 25 micron, 1 micron, 0.01 micron, as well as Water Separators, Molecular Sieve, and Activated Carbon.

FEATURES:

• Connections 1/2″ to 1-1/2″ and flow capacitiesup to 410CFM
• 2-in-1 cartridge,Molecular Sieve with integrated 1 micron After Filter
• Removal ofmoisture at point of use,as low as -40F dewpoint
• Advanced performanceparticulate and oil filtration with high-density deep-bed pleated elements for increased filtration surface area
• Arc-shaped air inlet for 75% less flow resistance, up to 55% less differential pressure loss, significantly more energy efficient
• Manually operated condensate drain
• Aluminum die cast housing, cathodic dip coating (e-coating) inside and out, and external powder coat for a lightweight, tough, and corrosion resistant housing
• Special adhesive secures element end caps, prevents blooming and bacterial growth
• Highly efficient polyester drainage layer, protects against inflating effects and cracking, prevents re-entry and favors coalesce and drainage
• Top-mountedMoisture Indicator, optional add-on (not included)
• Simple service, remove filter bowl to replace internal cartridge element
• Serviceable with Replacement Cartridge Elements, andReplacement Moisture Indicator
• Optional Wall Mount & Filter Connect Kit Available

VIEW DIMENSIONAL DRAWING & PRESSURE CORRECTION TABLE HERE

A 10psi pressure drop represents a 5% increase in energy cost
Over the 10 year life of a compressed air system, on average the cost of energy to run the system far outweighs the capital investment of buying it.Maintenance costs may not bemuch, but it is extremely importantbecause it directly impacts energy efficiency and system health.Neglected filters create a constant pressure drop, which destroys the energy efficiency of your system while entrainedoil, water, and particulate destroys system components. Protect your equipment, tools, processes, and ultimately your business with proper air treatment and regular maintenance!

For every compressed air system, we highly recommend installing Air Dryer, Water Separator, 1 micron Line Filter, and 0.01 micron Line Filter for the highest quality air.

Where to install theMolecular Sieve Filter in your compressed air system:
0.01 Micron Filter > Desiccant / 1 micron Filter > Point of Use Connection
