FY-TECH Short Wave 2 Bank Infrared Paint Curing System FY-2AT (*) (PRE-ORDER)

Description

Availability:For this particular item, this can change over time so kindly contact our team at [email protected] for the latest update.

Note:This is a pre-order item due for dispatch September when stock lands. All items in your order will be sent together once the pre-order item is in stock. For more information clickhere.

Postage:

• Flat shipping fee applies at checkout (standard postage). Additional charges may apply depending on delivery location particularly for WA, North QLD & NT. We’ll notify you after the order is placed.
• Please notify us using the ‘Special instructions for seller’box in your cart when you checkoutif you haveaforkliftto unload the goods orif it needs to be unloaded via a tailgate(which incurs an extra fee). Deliveries are only available for business / commercial addresses; and not for residential addresses.
• Please be aware that this item is located in a different warehouse. There will be a3-4 dayprocessing period before dispatch (including Click & Collect). Standard delivery periods apply.

FY-2AT control system is made with the PET hot press molding technique to provide stability and durability and features a touch-key panel design. It can be adjusted according to different paint layer requirements. Each emitter can be independently controlled.

The cassette structure is precision designed and uses 304 grade bright stainless steel reflectors and VPOWER or PHILIPS 21 gold plated shortwave infrared halogen lamps that enable the light to distribute evenly and increase the curing area.

• Made from aluminium alloy and 304 grade bright stainless steel reflectors.
• Equipped with Vpowers 21 quartz short wave infrared halogen lamps (Optional PHILIPS lamps also available).
• Automatic device with LED display electronic timer and power settings.
• Hydraulic lifter with an independent switch and 360 rotation.
• With pulse ultrasonic paint curing function.
• Power supply AC 200-240V Input Power:2x1100W
• Curing area of 800x1000mm
• Adjustable timer of 0min-99mins.
• Automatic overload protection.
• Each emitter can be independently controlled.

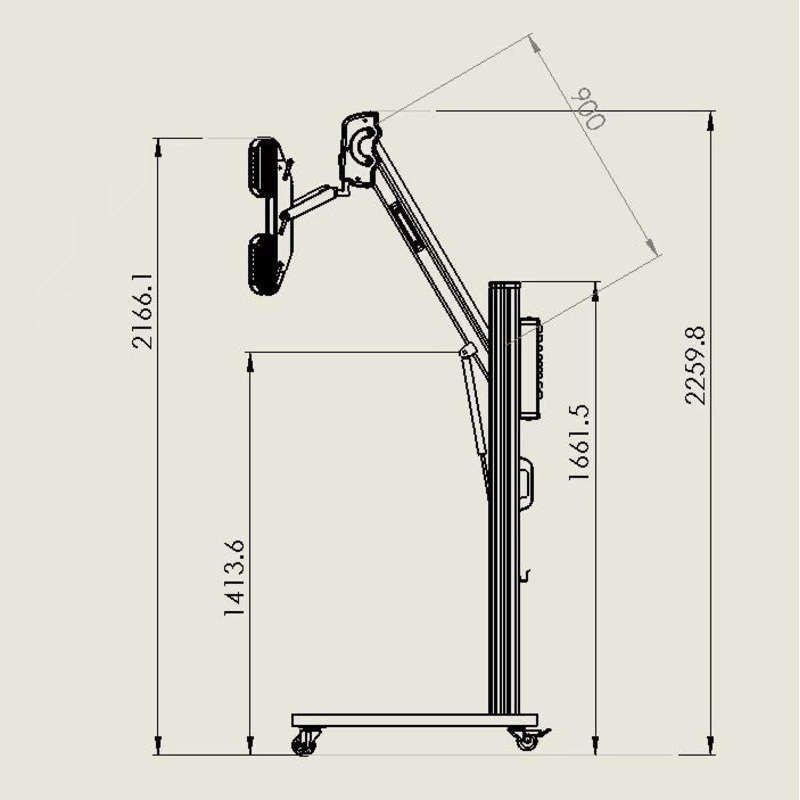

• Dimensions of unit: 1650 x 860 x 660mm

Brand FY-TECH P/N FY-2AT Type Curing lights Lumens N/A CRI+ N/A Colour Temperature N/A Weight 41kg Dimensions 1650x860x660mm Battery Plugged in Charging Time N/A Operating Time w. Full Charge N/A Country of Manufacture China Protection Class IP30

Application:Forceramic coating applications, it is recommended to have a contact time of 20 minutes from a 1 metre distance at 60deg C per contact area section. This may differ across the types of coatings used.

Shipping Information:
Box 1 of 3 (Head): 74 x 58 x 19cm 7kg
Box 2 of 3 (Body): 161 x 15 x 71cm 18kg
Box 3 of 3 (Base): 89 x 68 x 66cm 16kg

Download Brochure here

User Manual here
