GSC Power-Division High Pressure Conical Valve Spring with Ti Retainer and Seat | 2022+ Subaru WRX FA24F (5024)

Description

2022+ Subaru WRX FA24F High Pressure Conical Valve Spring with Ti Retainer and Seat by GSC Power-Division

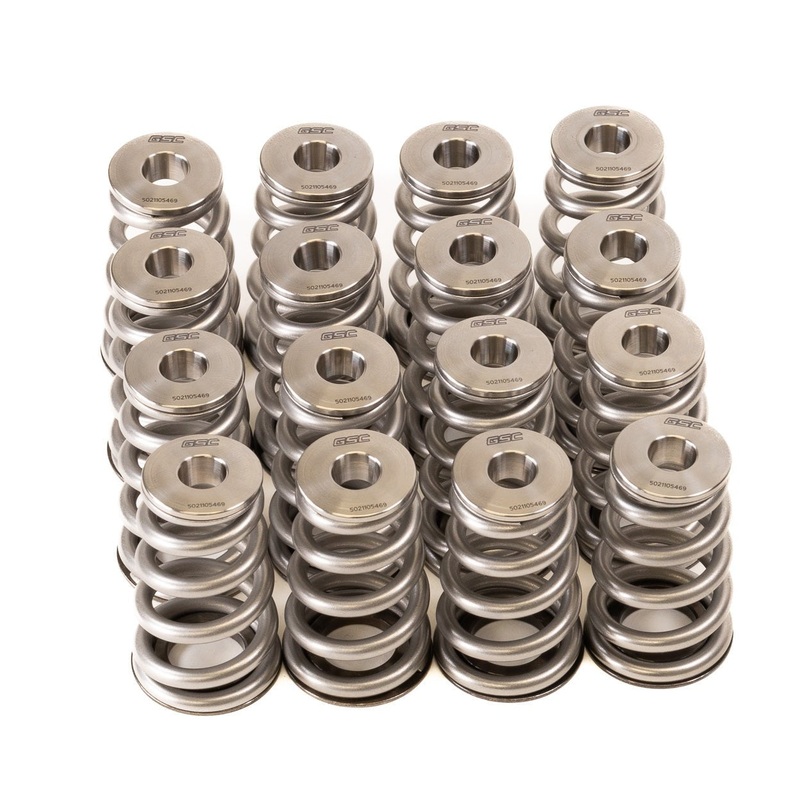

If youre looking to get the most out of your engine, GSC conical springs are the way to go. Theyre built to perform, engineered to last, and designed to let you take your engine to the next level. The GSC Power-Division High Pressure Conical Valve Spring Kit with Ti Retainer for the 2022+ Subaru WRX includes 16 titanium retainers and 16 Conical valve springs and 16 new Spring Seats.

True conical valve springs arent a new concepttheyve been proven in the industry to offer several key advantages over traditional spring designs. One of the biggest benefits of conical springs compared to traditional cylindrical or beehive springs is their ability to dampen and eliminate valvetrain harmonics. Out of the three designs, conical springs lead the way in maintaining valvetrain harmonic stability

Thanks to their varying coil diameter and spacing, conical springs act as natural harmonic dampers, absorbing the shock in the valvetrain. This means less stress, less wear, and a longer life for your engine components. This level of protection is essential for todays engines, which are being pushed to their physical and mechanical limits. Every GSC conical spring undergoes a super-finished surface treatment in addition to a patented, multi-step heat treatment process. The result? A super reliable, high-performance spring that lets you push higher RPMs and use more aggressive cam profiles with confidence.

Features

• 105 lbs @ 1.315″ install height
• 261lbs @ 0.843″ (12mm Valve Lift)
• Max RPM: 10,000 RPM
• Max boost: 60 psi

Benefits

• Reduces valvetrain weight and improves high-RPM stability
• Increases durability and reduces weight for faster engine response
• Prevents valve float, supports aggressive builds
• Allows for higher RPM limits and more power

Applications

• 2022+ Subaru WRX FA24F

What’s In The Box?

• GSC Power Division 2022+ Subaru WRX FA24F Conical Valve Spring and Ti Retainer Kit

Warranty

• Manufacturer Standard Warranty
