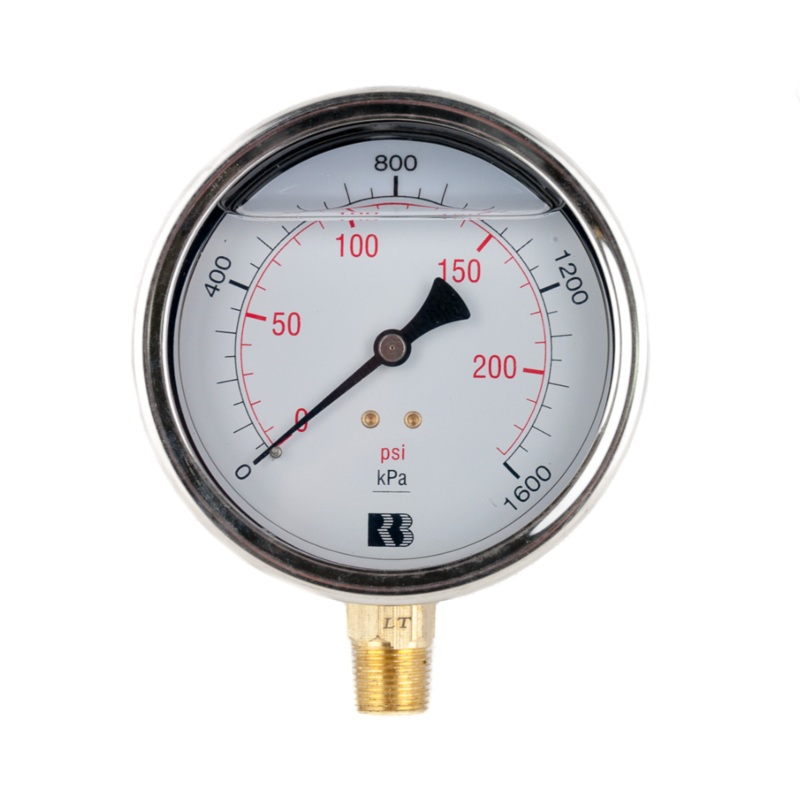

L63 (63mm Liquid Filled Pressure Gauge, lower mount)

Description

The L63 (Model 411) Pressure Gauge features a 63mm dial with a 304 stainless steel case, brass bourdon tube and connection, and a polycarbonate window. It offers a dual scale (kPa/psi) and has a BSPT lower mount. The gauge is liquid-filled and provides an accuracy of 2.5% of full scale.

The pressure ranges start from -100/0 kPa to 0/4,000 kPa (refer to the data sheet for all available ranges).

Optional features include a 63mm panel mount kit, 63mm front flange, and restrictors (0.46 or 0.25).

Technical Specifications

Brand Ross Brown Model L63 / 411 Type Pressure Gauge Working Temperature Up to 60 Degree C (use pigtail for higher temps) Dial Size 63mm Dial Label Black Print (kPa), Red Print (PSI) on White Background Ranges -100-0kPa to 0-40,000kPa Connection 1/4″ BSPT (Lower or Back Mount) Accuracy +/- 2.5%

Material Specifications

Case & Bezel 304 Stainless Steel Connection Copper Alloy Window Polycarbonate
