Micro Clean Cyclone Water Separator

Description

CAPACITY 25 to 1500 CFM models INLET/OUTLET SIZE 1/4″ to 3″ models PRESSURE 25 to 50cfm models: 0-232psig
125 to 1500cfm models: 22-232psig TEMPERATURE 35-176 F PERFORMANCE Removes 99% of Bulk Liquid AUTOMATIC FLOAT DRAIN OUTLET 1/8″ NPT WARRANTY 10 Year onPressure Vessel

Our range of Cyclone Water Separators eliminate 99% of bulk liquids in your compressed air or gas system improving your processes and reducing costly downtime. Manufactured in an ISO 9001 approved facility and tested in accordance with ISO 12500-4. Compact and simple to install, water traps are crucial to preventing corrosion and damage, while providing clean dry air to tools and equipment. Each separator comes equipped with an Automatic Float Drain.

FEATURES:

• Eliminate 99% of bulk liquids in your compressed air or gas system
• Prevents corrosion and damage to tools or processes
• Manufactured in an ISO 9001 approved facility and tested in accordance with ISO 12500-4

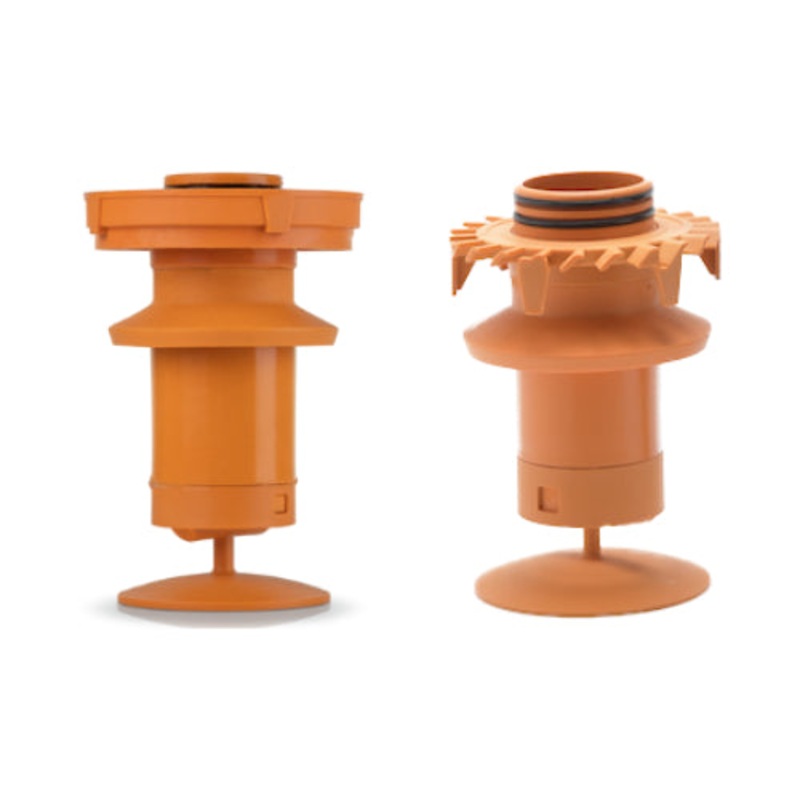

• Unique vanes engineered to provide optimal liquid removal efficiency across a wide range of operating conditions
• Die cast aluminum housing and polyester powder coated finish for industry leading corrosion resistance, long life of reliable separation
• Vortex separator engineered for maximum efficiency
• Separated liquids cannot re-enter the gas stream, greatly improving drainage and separation performance
• Equipped with an externally accessible Automatic Float Drain
• Improves your processes and reduces costly downtime
• Perfectly suitable for variable speed compressors
• Serviceable withReplacement Auto Float Drain

VIEW TECH DATA SHEET & DRAWING & PRESSURE CORRECTION TABLE HERE

Compressed Air USAs Micro Clean line offers proven Performance, Quality, and Reliability. We offer a complete and cost effective solution to Compressed Air Treatment. Over the 10 year life of a compressed air system, on average the cost of energy to run the system far outweighs the capital investment of buying it.While maintenance cost is not much, it is extremely importantbecause it directly impacts energy efficiency and compressor health.A 10psig pressure drop represents a 5% increase in energy cost. Neglected filters that become clogged creates a continuous pressure drop, which destroys the efficiency of your system. Entrained water and oil destroys system components and tools. Protect your equipment, tools, processes, and ultimately your business.

For the highest quality compressed air possible, we recommend utilizing an Air Dryer, Line Filters, and a Water Trap to remove all contaminants from the system.

Where to install the Water Trap in your compressed air system:

• In a system with aRefrigerated Air Dryer:

• Air Compressor Receiver Water Trap 1 Micron Filter Refrigerated Air Dryer 0.01 Micron Filter

• In a system with aDesiccant Air Dryer:

• Air Compressor Receiver Water Trap 0.01 Micron Filter Desiccant Air Dryer 1 Micron Filter

• In a system at thePoint of Use:

• Water Trap 1 Micron Filter 0.01 Micron Filter Point of Use Connection
