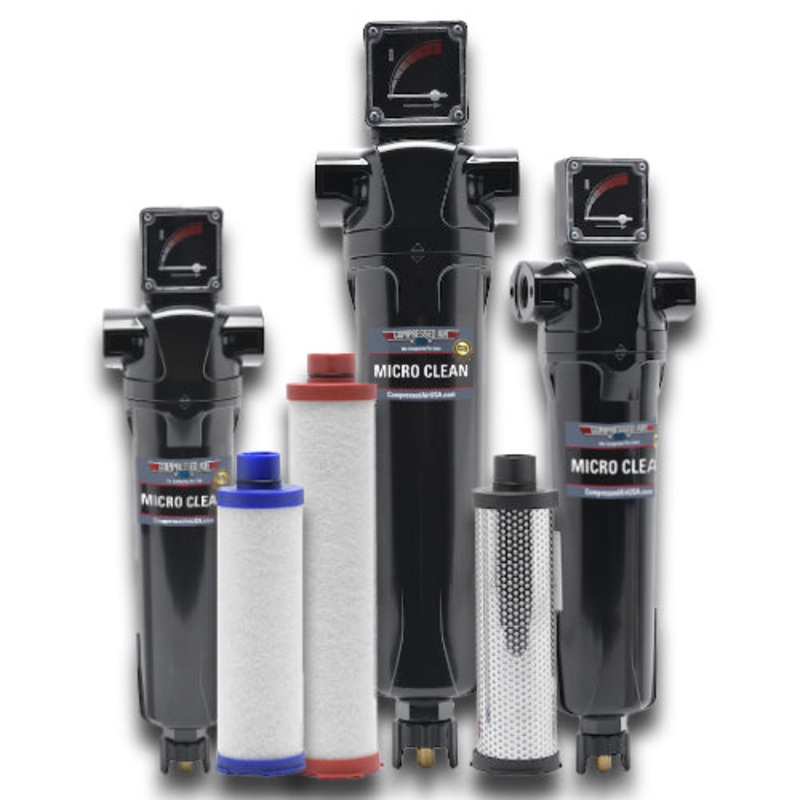

Replacement Element Micro Clean General Purpose XF Line Filter (15 to 1500cfm) (ISO CLASS 2)

Description

Ready-Ship:Get it FAST!Ships Quick

ELEMENT TYPE 2-in-1 Coalescing & Particulate, General Purpose, XF Filter Line PERFORMANCE ISO CLASS: 2 (per ISO 8573.1:2010)
Max Particle Size: 1 micron
Max Oil Content: 0.1 ppm (mg/m)
Water Pressure Dew Point: -40C/-40F RECOMMENDED ELEMENT LIFE 12 Month WARRANTY 1-Year

The Compressed Air USA Micro Clean XF Filter line is an advanced filter technology for coalescing and particulate filtration in compressed air and gas applications. XF Filters utilize deep pleated media for exceptional particulate retention and custom anti-re-entrainment layer for oil aerosol removal. Our robust construction is designed for both longevity and energy efficiency as these models have an extremely low pressure drop across them (<125 mbar). Manufactured in an ISO 9001 approved facility and tested in accordance with ISO 12500-4. Micro Clean filters are also designed to exceed the ISO 8753-1 standards for compressed air purity & the ISO 12500 series international standard for compressed air filter testing. Micro Clean filters also carry Canadian Registration Numbers (CRN) for approved use in every province of Canada. Our filters are also subject to a 1000 hour neutral salt spray test for corrosion resistance to ISO 9227:2006, burst pressure test for a 5:1 safety factor, 100% tested for pressure leaks, and 100% tested for aerosol integrity.

FEATURES:

• General Purpose Filter rated for 1 micron particulate and 0.3ppm oil
• Advanced filter design to optimize flow capabilities, reduce differential pressure, and boost energy efficiency of the system
• Extremely low pressure drop (<125 mbar)
• Deep pleated filter media for exceptional particulate retention
• Custom anti-re-entrainment layer for oil aerosol removal
• Fixed thread engagement stop and lock indication arrows on push fit elements to prevent over tightening and to ensure an effective seal
• Color coded end caps for simplified grade identification
• Improves your processes and reduces costly downtime
• Compatible with Micro Clean XF General Purpose Line Filters
• RecommendedReplacement Auto Float Drain, and Replacement Differential Pressure Indicator

VIEW TECH DATA SHEET & DRAWING & PRESSURE CORRECTION TABLE HERE

Compressed Air USAs Micro Clean line offers proven Performance, Quality, and Reliability. We offer a complete and cost effective solution to Compressed Air Treatment. Over the 10 year life of a compressed air system, on average the cost of energy to run the system far outweighs the capital investment of buying it.While maintenance cost is not much, it is extremely importantbecause it directly impacts energy efficiency and compressor health.A 10psig pressure drop represents a 5% increase in energy cost.Neglected filters that become clogged creates a continuous pressure drop, which destroys the efficiency of your system. Entrained water and oil destroys system components and tools. Protect your equipment, tools, processes, and ultimately your business.

For the highest quality compressed air possible, we recommend utilizing an Air Dryer, Line Filters, and a Water Trap to remove all contaminants from the system.
