Tomei Forged Piston Set – 86.50mm | 1993-2002 Toyota Supra Turbo (TA202A-TY03E)

Description

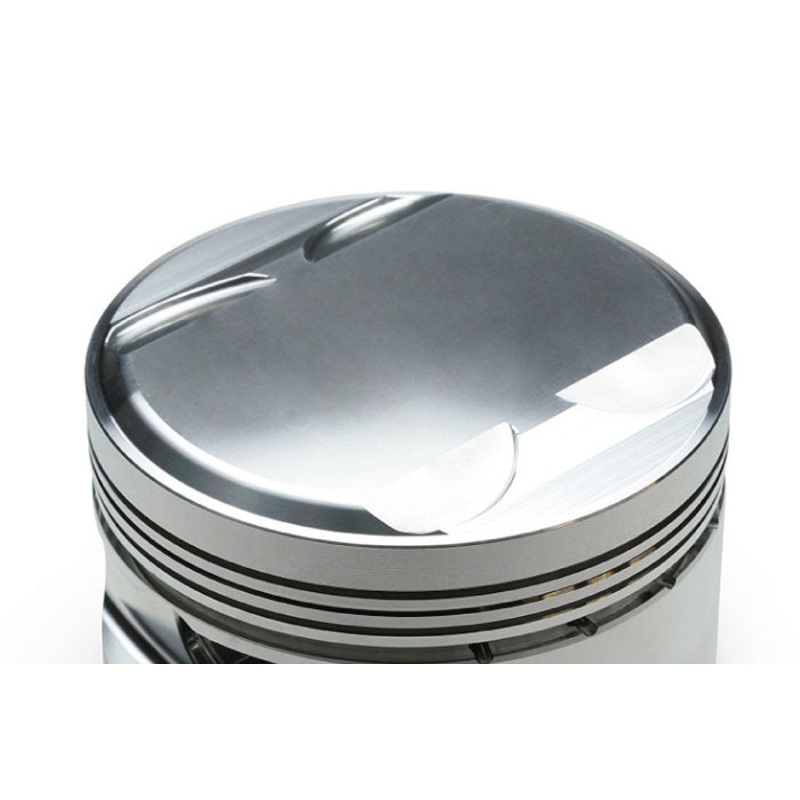

Forged Piston Set for 1993-2002 Toyota Supra Turbo by Tomei

Upgrade your stock internals with this forged piston set by Tomei to push/handle significantly more power.

Features

• Bore: 86.50mm
• Pin Diameter: 22mm
• Pin Length: 60.0mm
• Circlip Inner Diameter: 22mm
• Valve Recess: WITH
• Compression Height: 29.50mm
• Piston Volume: -22.6cc
• Piston Weight: 278.5g
• Pin Weight: 121.5g
• Total Weight: 400.0g
• Top Ring: 1.20mm x 3.05mm
• Second Ring: 1.20mm x 3.90mm
• Oil Ring: 2.50mm x 2.95mm
• Piston Material: A4032

Applications

• 1993-2002 Toyota Supra Turbo

What’s In The Box?

• 1 – Piston Kit

References

• Manual
