Description

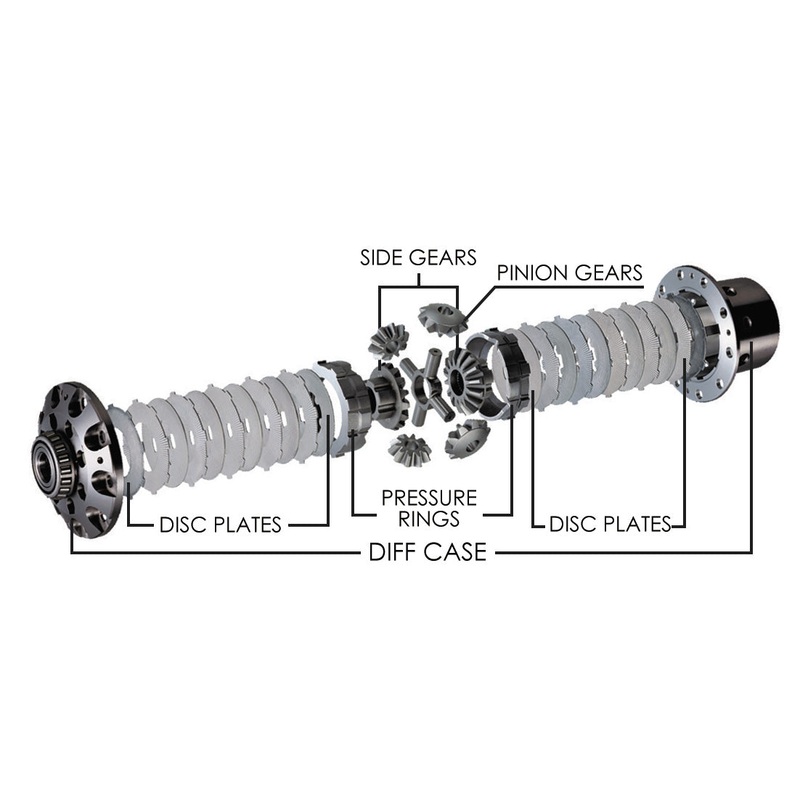

Technical Trax Advance 1.5-Way LSD Pro Kit for 2009-2014 Hyundai Genesis Coupe Turbo by Tomei
The T-Trax Advance LSD has several advantages over similar products from other manufacturers. It features optimized cam angles, spring discs, larger surface area clutch disc and a higher intial torque setting. These all translate to improved corner entry, more precise driving, better corner exit traction as well as quicker response through successive corners. T-Trax Advance offers superior performance in every way.
Features
- Ring Gear Bolt PCD: 150mm
- Disk Diameter: 106mm
- Disk Interior Teeth: 6
- Disk Exterior Teeth: 4
- Thickness: 1.7mm
- Size & Number of Ring Gear Bolts: M12 (10)
- Number of Spline: 28T
- Inner Flange Diameter: 32mm
- Initial Torque(kg/m): 11.0-13.0
- Pressure Ring Cam Angle: 60 x 45
Benefits
- Utilizes original factory flange
- Quiter and improved efficiency
Applications
- 2009-2014 Hyundai Genesis Coupe Turbo
What’s In The Box?
- 1 – LSD Pro Kit
References
- Installation Instructions
