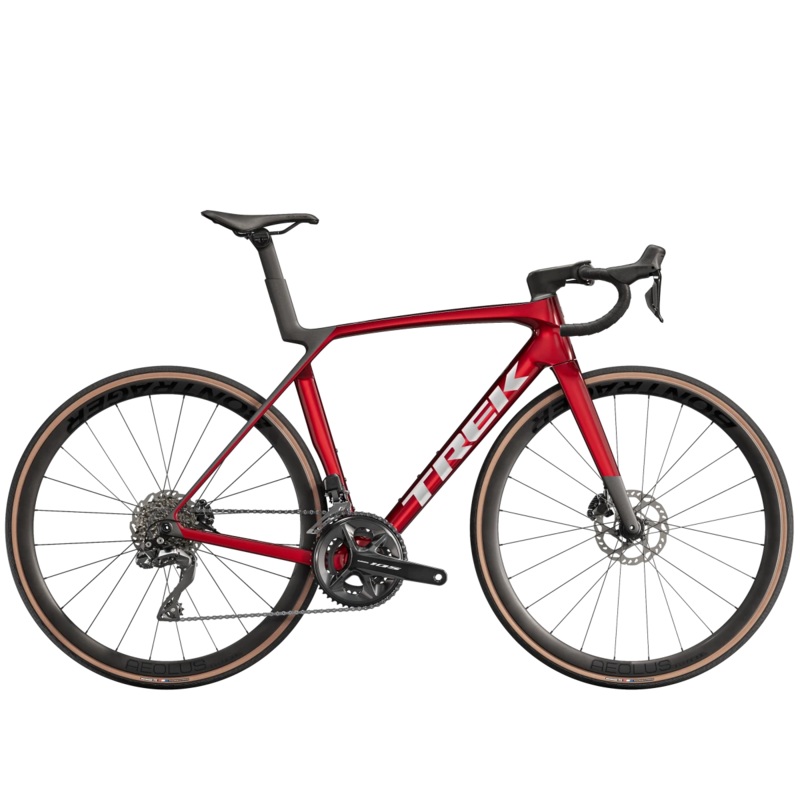

Trek Madone SL 6 Gen 8 2025|XS|S|M|M/L|L|XL|Matte Dark Web|Crimson|White Prismatic

Description

The Madone SL 6 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8, but with a more economical OCLV 500 Carbon lay-up and two-piece cockpit with hidden cable routing. It’s built to race with geometry that keeps you comfortable on the climbs and perched for the attack. A Shimano 105 Di2 electronic group set keeps the price down without sacrificing lightning-fast electronic shifting. Plus, it’s topped off with carbon wheels for extra lightweight performance.

It’s right for you if…

You want a featherweight road race bike without top-end race pricing. You’re up for racing, club rides or solo spins up winding canyons, and don’t want to compromise between climbing efficiency and aerodynamics. You love the workhorse performance of Shimano’s 105 group set, but want the added benefit of Di2 lightning-fast electronic shifting.

The tech you get

An ultra-light OCLV 500 Carbon frame with aero tubing and IsoFlow comfort technology. A 2×12 Shimano 105 Di2 electronic group set that delivers clean shifts thanks to trickle-down tech. Plus, it’s topped off with Bontrager Aeolus Elite 35 carbon wheels that come set up tubeless.

The final word

The Madone SL 6 Gen 8 delivers race-worth aerodynamics and climb crushing weight. It’s a bonafide superbike in a more economical package, thanks to its 500-Series OCLV Carbon lay-up and workhorse Di2 group set. It offers the same frame tech as its SLR sibling, like aero tube shaping and lightweight IsoFlow comfort tech, so you can stay at the front of the pack.

Frame 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle Fork Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Weight

Weight ML – 8.16 kg / 17.99 lbs (with TLR sealant, no tubes) Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

E-system

Charger Charging cable included

Drivetrain

Shifter Shimano 105 R7170, 12-speed Front derailleur Shimano 105 R7150 Di2, braze-on, down swing Rear derailleur Shimano 105 R7150 Di2, 36T max cog *Crank Size:XS, S
Shimano 105 R7100, 50/34, 165mm length Size:M
Shimano 105 R7100, 50/34, 170mm length Size:ML, L
Shimano 105 R7100, 50/34, 172.5mm length Size:XL
Shimano 105 R7100, 50/34, 175mm length Bottom bracket Praxis, T47 threaded, internal bearing Cassette Shimano 105 7101, 11-34, 12-speed Chain Shimano SLX M7100, 12-speed Max. chainring size 1x: 54T, 2x: 56/43

Wheels

Wheel front Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, 100×12 mm thru axle Wheel rear Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, Shimano 11/12-speed freehub, 142×12 mm thru axle Skewer front Bontrager Switch chamfered thru axle, removable lever Skewer rear Bontrager Switch chamfered thru axle, removable lever Rim Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle Tyre Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700×28 mm Tyre part Bontrager TLR sealant, 180 ml/6 oz Rim strip Bontrager TLR Max tyre size 32 mm (as measured, see manual for details)

Components

*Saddle Size:XS, S
Bontrager Aeolus Comp, steel rails, 155 mm width Size:M, ML, L, XL
Bontrager Aeolus Comp, steel rails, 145 mm width *Seatpost Size:XS, S, M
Madone aero carbon seat post, 0 mm offset, short length Size:ML, L, XL
Madone aero carbon seat post, 0 mm offset, long length *Handlebar Size:XS
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width Size:S, M
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width Size:ML, L
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width Size:XL
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width *Stem Size:XS
Trek RCS Pro, -7-degree, 80 mm length Size:S, M
Trek RCS Pro, -7-degree, 90 mm length Size:ML, L
Trek RCS Pro, -7-degree, 100 mm length Size:XL
Trek RCS Pro, -7-degree, 110 mm length Brake rotor Shimano RT70, CentreLock, 160 mm Rotor size Max brake rotor sizes: 180 mm front, 160 mm rear

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
