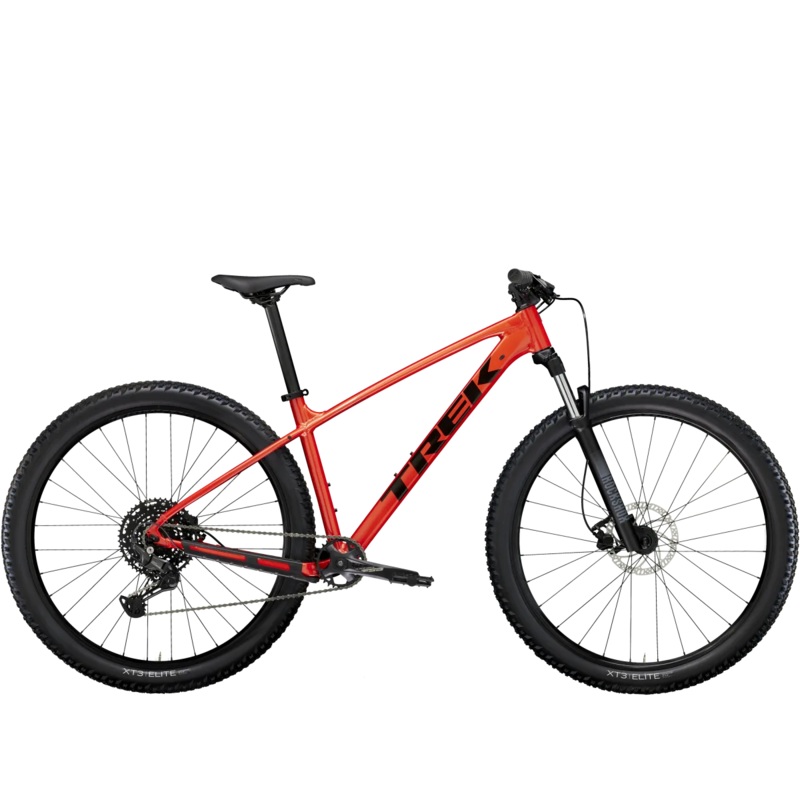

Trek Marlin 6 Gen 3 2025|XXS (26″ wheels)|XS (27.5″ wheels)|S (27.5″ wheels)|M (29″ wheels)|ML (29″ wheels)|L (29″ wheels)|XL (29″ wheels)|XXL (29″ wheels)|Rage Red to Deep Dark Blue Fade|Lava|Miami Green to Dark Aquatic Fade

Description

The Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the upgraded suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.

It’s right for you if…

You want a trail bike that’s dialled for building confidence on the dirt, and versatile enough for commuting to work or school.

The tech you get

A lightweight aluminium frame with modern trail riding geometry and internal routing that keeps cables protected and keeps the bike looking sleek. A 100 mm RockShox Judy front suspension fork that cushions rocks, roots and bumps in the trail, 10-speed fuss-free Shimano CUES shifting and the serious stopping power of hydraulic disc brakes.

The final word

The Marlin 6 is an ideal trail bike for riders who want to progress on the dirt, and want a bike that can keep them rolling off of the trail, too.

Specifications

*spec applies to all sizes unless otherwise noted

Frame Size:XXS , XS
Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew Size:S , M , ML , L , XL , XXL
Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew *Fork Size:XXS
RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 80 mm travel Size:XS
RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 100 mm travel Size:S
RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5” wheel, 100 mm QR, 100 mm travel Size:M , ML , L , XL , XXL
RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29″ wheel, 100 mm QR, 100 mm travel Max compatible fork travel 120mm, XXS: 80mm

Wheels

Hub front Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm QR Rim Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve *Tyre Size:XXS
Bontrager XT3 Elite, Tubeless Ready, Inner Strength casing, wire bead, 60 tpi, 26×2.35″ Size:XS , S
Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 27.5×2.35″ Size:M , ML , L , XL , XXL
Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29×2.35″ Max tyre size Frame: 29×2.40″ (XXS: 26×2.40″, XS & S: 27.5×2.40″), Fork: See manufacturer

Drivetrain

Shifter Shimano U6000, 10-speed Rear derailleur Shimano CUES U6000 GS *Crank Size:XXS , XS
FSA Alpha Drive, 30T, 160 mm length Size:S , M , ML
FSA Alpha Drive, 30T, 170 mm length Size:L , XL , XXL
FSA Alpha Drive, 30T, 175 mm length Bottom bracket FSA, 73 mm, threaded cartridge, 122.5 mm spindle Cassette Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed Chain Shimano LG500 Pedal VP-536 nylon platform Max. chainring size 1x: 34T, 2x: 36/22

Components

Saddle Bontrager Verse Short, stainless steel rails *Seatpost Size:XXS
Bontrager alloy, 31.6mm, 12mm offset, 300mm length Size:XS , S , M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length Size:ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length *Handlebar Size:XXS , XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width Size:S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width Size:M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width Grips Bontrager XR Trail Comp, nylon lock-on *Stem Size:XXS , XS , S
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length Size:M , ML , L
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length Size:XL
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length Size:XXL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length Head set Semi-integrated, 1-1/8″ Brake rotor Tektro, 6-bolt, 160mm *Brake Set Size:XXS , XS , S
Tektro HD-M276 hydraulic disc, short reach Size:M , ML , L , XL , XXL
Tektro HD-M275 hydraulic disc Rotor size Max brake rotor sizes – Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer

Weight

Weight M – 14.50 kg / 31.97 lbs (with tubes) Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
