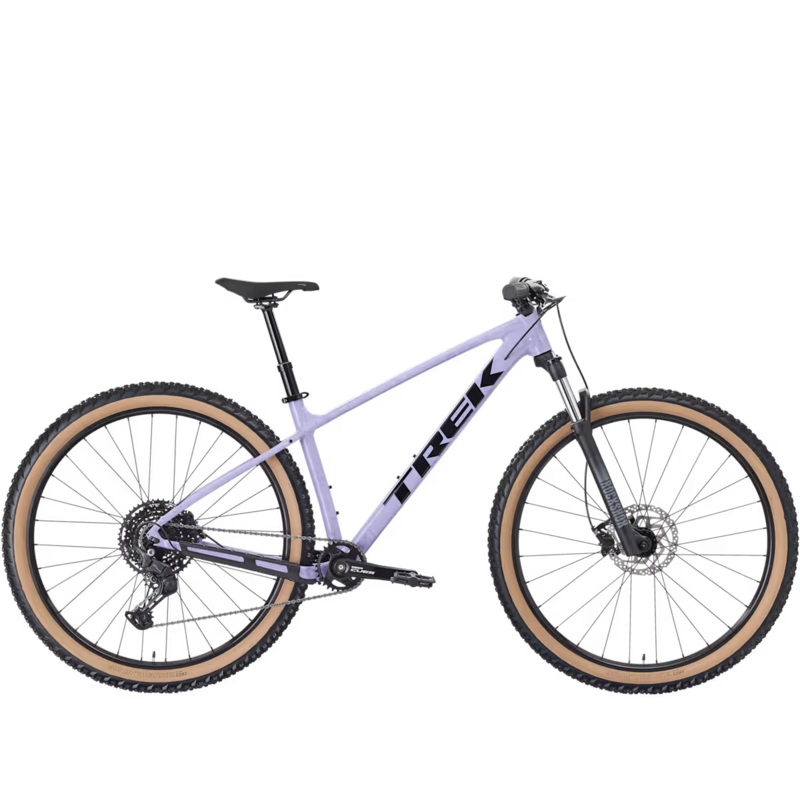

Trek Marlin 6 Gen 3 2026|XS (27.5″ wheels)|S (27.5″ wheels)|M (29″ wheels)|ML (29″ wheels)|L (29″ wheels)|XL (29″ wheels)|XXL (29″ wheels)|Matte Lichen/Keswick Green Fade|Gloss Lavender Haze|Lava

Description

The Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.

*Frame Size:XS
Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew Size:S , M , ML , L , XL , XXL
Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew *Fork Size:XS , S
RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 100 mm travel Size:M , ML , L , XL , XXL
RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29″ wheel, 100 mm QR, 100 mm travel

Wheels

Hub front Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm QR Skewer rear 173×5 mm QR *Rim Size:XS , S , M , ML , L , XL , XXL
Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve Size:M , ML , L , XL , XXL
Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve *Tyre Size:XS , S
Maxxis IKON, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5×2.35” Size:M , ML , L , XL , XXL
Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60 tpi, 29×2.35″ Rim strip Bontrager TLR

Drivetrain

Shifter Shimano U6000, 10-speed Rear derailleur Shimano CUES U6000 GS *Crank Size:XS , S , M , ML
Shimano U4000, 30T chainring, 170 mm length Size:L , XL , XXL
Shimano U4000, 30T chainring, 175 mm length Bottom bracket Shimano, 73 mm, threaded cartridge, 122.5 mm spindle Cassette Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed Chain Shimano LG500 Pedal VP-536 nylon platform

Components

Saddle Bontrager Verse Short, stainless steel rails *Seatpost Size:XS , S
TranzX JD-YSI34, 100 mm travel, internal routing, 34.9 mm, 350 mm length Size:M
TranzX JD-YSI34, 125 mm travel, internal routing, 34.9 mm, 405 mm length Size:ML , L , XL
TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm, 456 mm length Size:XXL
TranzX JD-YSI34, 170 mm travel, internal routing, 34.9 mm, 500 mm length *Handlebar Size:XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width Size:S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width Size:M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width Grips Trek Line Comp, nylon lock-on *Stem Size:XS , S
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length Size:M , ML , L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length Size:XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length Size:XXL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length Head set Semi-integrated, 1-1/8″ Brake Shimano MT200 hydraulic disc *Brake rotor Size:XS , S , M , ML , L , XL , XXL
Shimano RT26, 6-bolt, 160 mm Size:M , ML , L , XL , XXL
Shimano RT26, 6-bolt, 180 mm Brake Set Shimano MT200 hydraulic disc

Weight

Weight M – 15.00 kg / 33.07 lbs Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
