Description

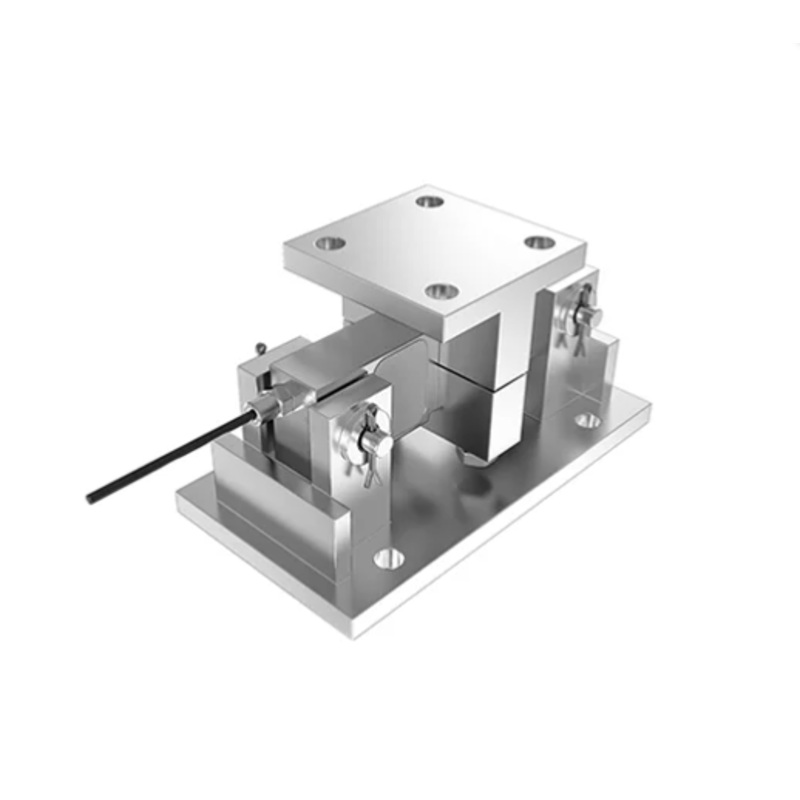

Title :- TWA/Mount Load Cell Mounting Assemblies 65016
Brand :- Sensortronics
FEATURES
Capacity ranges of 1000 to 75,000 pounds
Mounts directly to the floor for structural support
Self-checking with provisions for thermal expansion
and contraction
Insensitive to side loads and bending moments
High outputwell suited to high deadload/low liveload
applications
Load cells have matched outputs for multi-cell systems
Excellent combined error and repeatability
Accuracies exceed 0.1% with agitated loads
Integral conduit adaptor
Sensorgage sealed to IP67 standards
Factory Mutual System Approved for Classes I, II, III;
Divisions 1 and 2; Groups A through G.
Also, non-incendive ratings (No barriers!)
Optional
– Stainless steel, welded seal assemblies available
APPLICATIONS
Tank, bin and hopper weighing
Silo weighing
Batching, blending, mixing, level and inventory
monitoring
DESCRIPTION
The 65016-TWA is a mid to high capacity nickel-plated alloy steel weighing assembly. It has high side load rejection, and is able to withstand loads in all directions, up to and exceeding its rated capacity, without permanent damage or the threat of structural failure. This weighing assembly is also designed to move in the direction of thermal expansion, guaranteeing accurate measurements regardless of conditions. Nickel plating and IP67 rated sealing make this load cell suitable for use in outdoor applications as well as applications that are subject to high pressure wash down. For a higher degree of corrosion and water resistance please see 65016-0104W, the stainless steel and welded seal version of 65016. This load cell is rated intrinsically safe by the Factory Mutual System (FM); making it suitable for use in potentially explosive environments.
