WINCHMAX. 12V CETOP5/NG10 Solenoid Operated Directional Control Valve and Manifold Block.

Description

CETOP5/NG10 Solenoid Valve and Manifold Subplate.

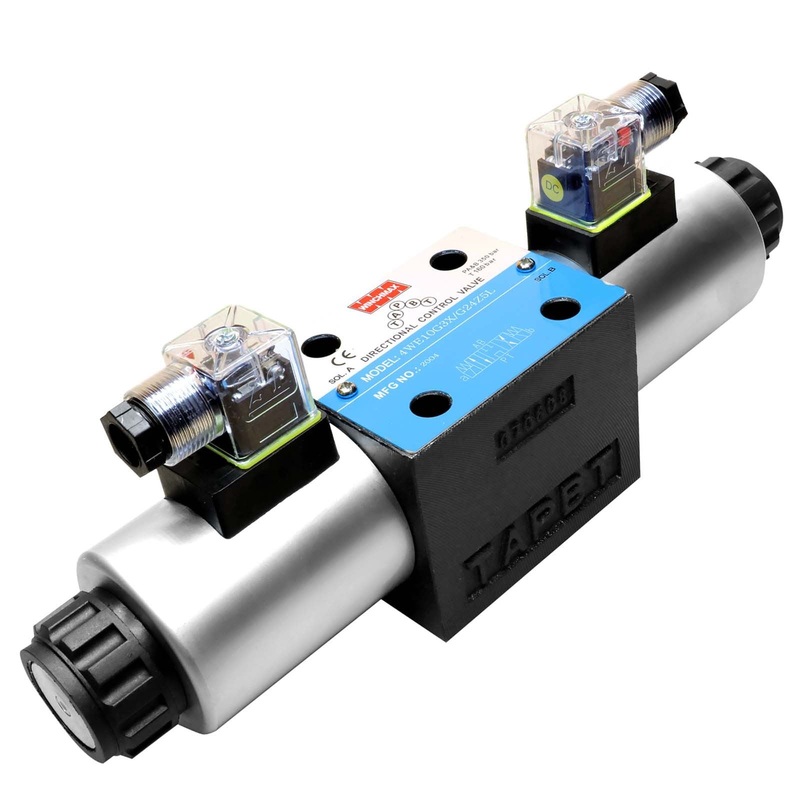

Solenoid Operated Directional Hydraulic Control Valve, CETOP5/NG10 Three-Position 12V
Solenoid-operated directional spool valve used to start, stop and direct the oil flow.

Features.

• Double 12V Coils.
• High Flow up to 120l/min.
• Removable DIN plug connector with clear cover, cable gland and LED indicator.
• Configuration; Spring centred P open to Tank, A & B Blocked.
• Max Pressure P, A, B, 31.5 Mpa (350 bar/4500 psi).
• Manual override feature.

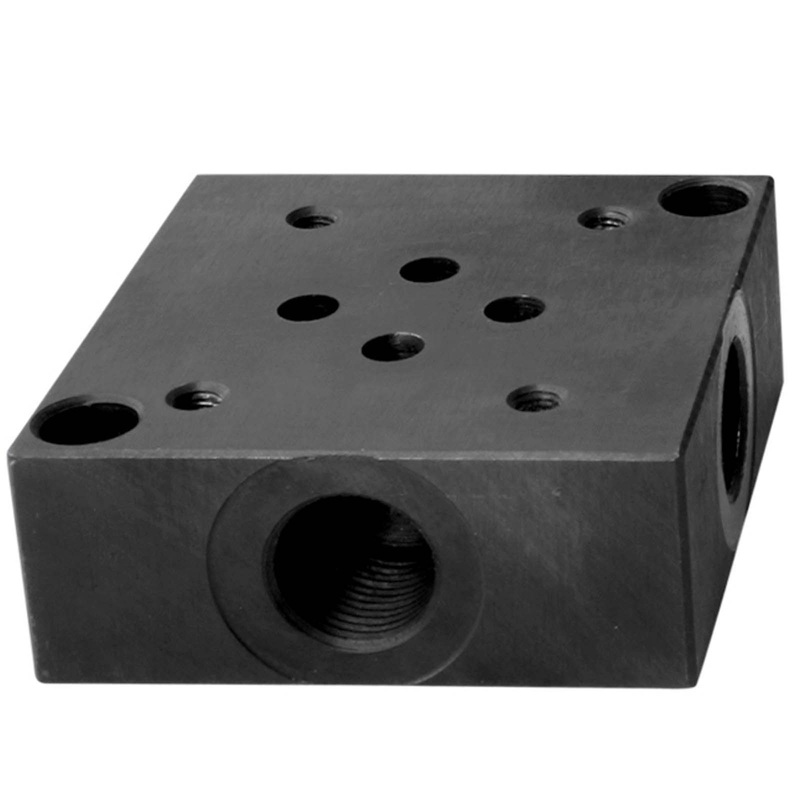

Manifold Subplate Cetop5/NG10 Hydraulic
These steel plate covers have been designed to replace valves on the steel manifold and work to provide a pressure blank, which will enable the remaining station to operate. A manifold subplate with reliable relief valves will improve your system’s overall safety and precise control.

Features.

• Forged Steel Construction
• Side Ported P, T, A, B.
• Port size 1/2 inch BSP

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
VAT invoice provided with every sale.
