WINCHMAX. 12V CETOP5/NG10 Solenoid Valve, Manifold Subplate and Remote Controls.

Description

CETOP5/NG10 High Flow Wireless Remote Control Operated Modular Directional Control Valve with Pressure Regulator Manifold Block.
Wireless high-flow directional control for larger hydraulic winches or where higher speeds are desirable.

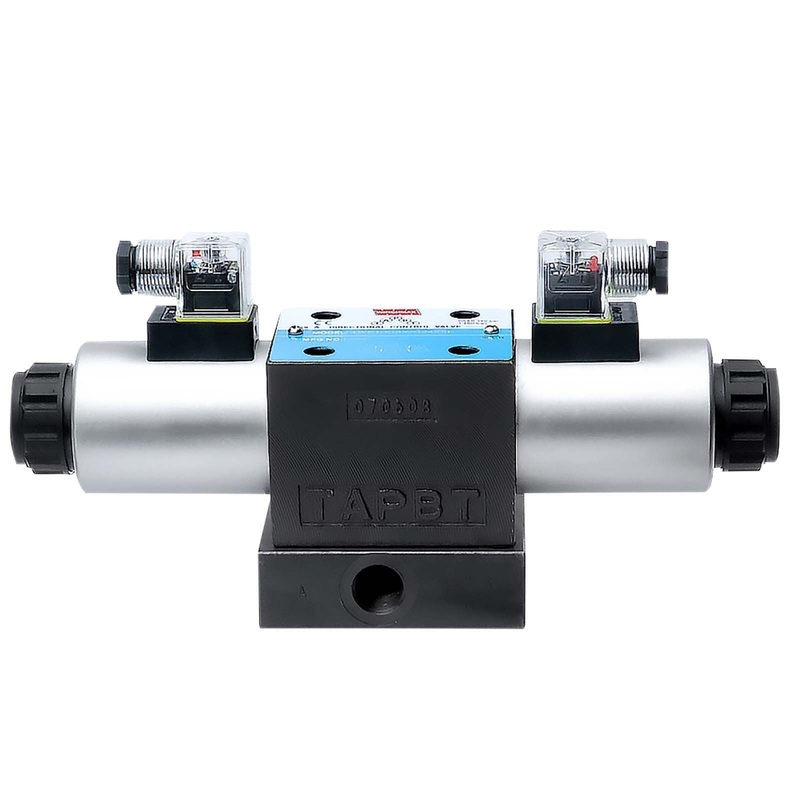

Solenoid Operated Directional Hydraulic Control Valve, CETOP5/NG10 Three-Position 12V
Solenoid-operated directional spool valve used to start, stop, and direct the oil flow.

Features

• Double 12V Coils.
• High Flow up to 120l/min.
• Removable DIN plug connector with clear cover, cable gland, and LED indicator.
• Configuration; Spring-centred P open to Tank, A & B Blocked.
• Max Pressure P, A, B, 31.5 Mpa (350 bar / 4500 psi).
• Manual override feature.

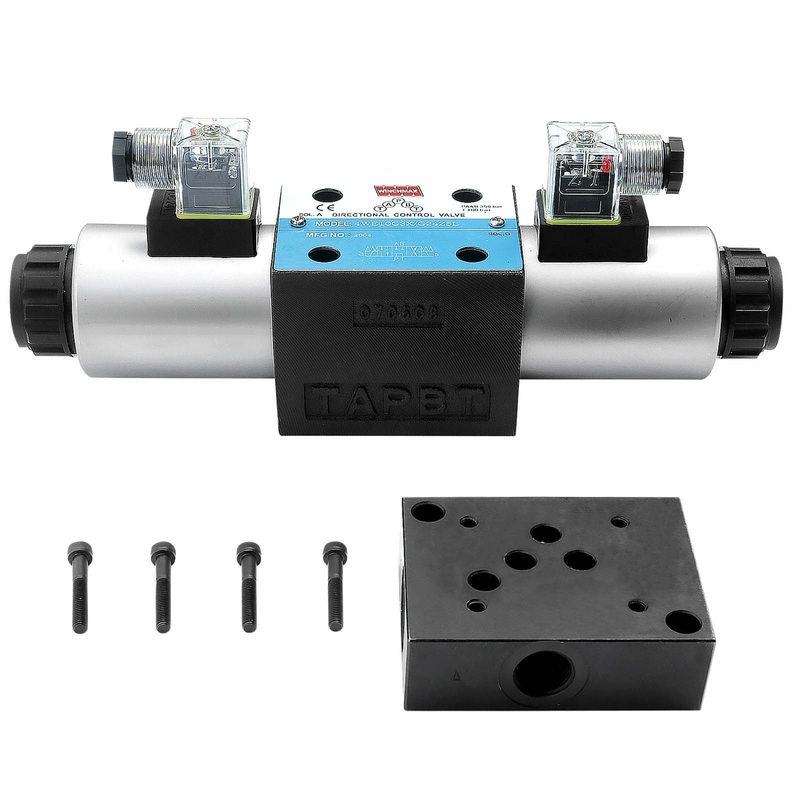

Manifold Subplate Cetop5/NG10 Hydraulic
These steel plate covers have been designed to replace valves on the steel manifold and work to provide a pressure blank, which will enable the remaining station to operate. A manifold subplate with reliable relief valves will improve your systems overall safety and precise control.

Features

• Forged Steel Construction.
• Side Ported P, T, A, B.
• Port size 1/2 inch BSP

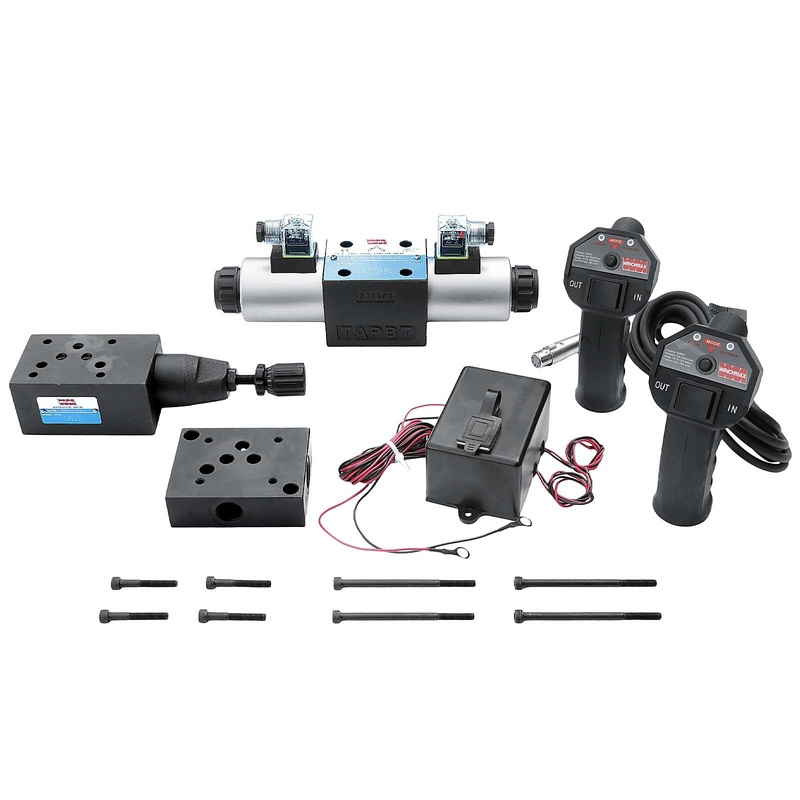

Winch Remote Control, Wireless. Twin SL Handsets. Long Range Wireless with Enclosure, 12V
Converts a 12V solenoid-operated direction valve on a hydraulic winch from manual switching to the long-range wireless remote control.

This new and innovativedesign combines the mm precision control of a manual wander lead system with the convenience of a wireless system. The robust handheld controllers can be plugged into the control box in the usual way or disconnect the cable and with the press of a button, the handheld controller becomes fully wireless.

Features

• Supplied with two large grip handheld controllers.
• Can be used tethered (with control cable supplied) or fully wireless.
• Operating Range over 30m (100ft).
• Improved components for better reliability, range, and battery life.
• Control box housing a wireless receiver and fitted with a socket for optional wander lead connection.
• 8m control box power supply leads fitted with ring terminals.
• 250mm output cables to connect to the coils on an existing solenoid control valve.
• Approximate control box size is 75mm x 105mm x 60mm, with two lugs for convenient fixing.
• Easy to fit, full installation instructions supplied.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.
