10CFM Drytec Refrigerated Air Dryer w/ Filtration (SDE-US-10)

Description

DRYER CAPACITY 10 CFM RECOMMENDED Pair with 3 HP TYPE Non-Cycling MAX PRESSURE 230 PSI MAX TEMPERATURE 140 F POWER Electric VOLTAGE 115V / 1phase / 60 Hz CONNECTION SIZE 1/2″ NPT INTEGRALPRE-FILTER (X) Coalescing Water & 1 micron particulate INTEGRAL POST-FILTER (Y) Coalescing Oil 0.01 ppm DIMENSIONS 17 x 16 x 23 IN WEIGHT 71 LB WARRANTY 1 Year

Drytec offers the best refrigerated air dryers in the industry, packed withfeatures to provide high quality, clean, dry filtered air . Eliminate moisture, particulate,and contaminationto prevent complications or damage to processes and equipment. TheSDE Series of dryers utilizes energy efficient R134a and supplies a constant dew point at all ranges of flow. Most important arethe integrated line filters that protect the dryer and provide high quality air, while maintaining a compact and easily serviceable design. The Drytec X Pre-Filter is for water removal and 1 micron particulate, and Y Post-Filter for oil removal down to 0.01 ppm. Take advantage of thecost and space savings from not having to purchase and pipe-inseparate line filters.

Drytec SDE air dryers meet various market requirements (ISO 8573 Standards)formanyindustrial applications. Food and beverage, pharmaceutical,pure air clean rooms,chemical plants, paint spraying, powder coating, sand/shot blasting, packaging, control & instrument air, microchip production, andseveral others.

• Integrated line filtration (pre-filter and post-filter) for dryer protection and high quality air
• Filtersequipped with auto drain valves, also manual operation for depressurization during service
• Constant dew point at all ranges of flow, unlike other non-cycling dryers
• Low pressure drop adds to compressor efficiency
• Aluminum heat exchanger, large heat transfer surface area, thick cylindrical walls, optimized for best water separation performance
• Grooved couplings and fittings for positive connection without leaks
• Environmentally friendly and energy efficient R134a, pressure gauges at suction and discharge
• Digital controllerforquick adjustment, dew point monitoring, alarm monitoring, energy saving eco-mode, periodic maintenance display, status report, hour meter
• Quick start and system response maximizes production uptime
• Cycle logic of the condenser fan enhances energy efficiency
• Electrical panel separate from refrigeration and service side
• Compact and easily serviceable design
• Replacement line filter elements, maintenance that takes minutes

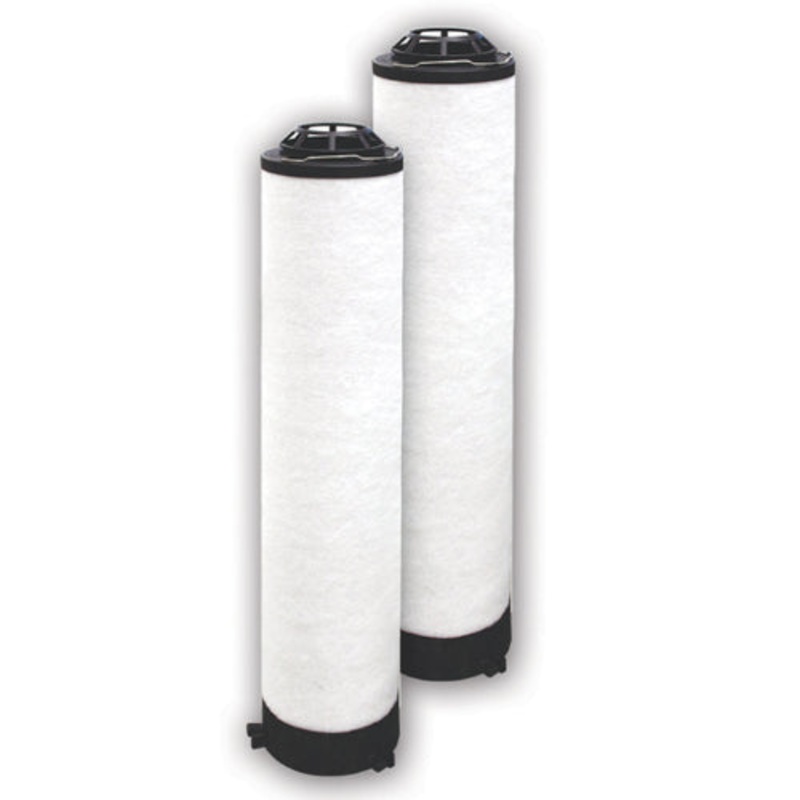

• Service Kit (X & Y Filter Replacement) MKON-US-55-KIT
